Construction sites are a major source of dust and other pollutants. Prana Air can help construction sites to monitor their air quality levels and take steps to reduce emissions.
Ambient Monitor Variants
Prana Airs ambient air quality monitoring devices are where your search stops.

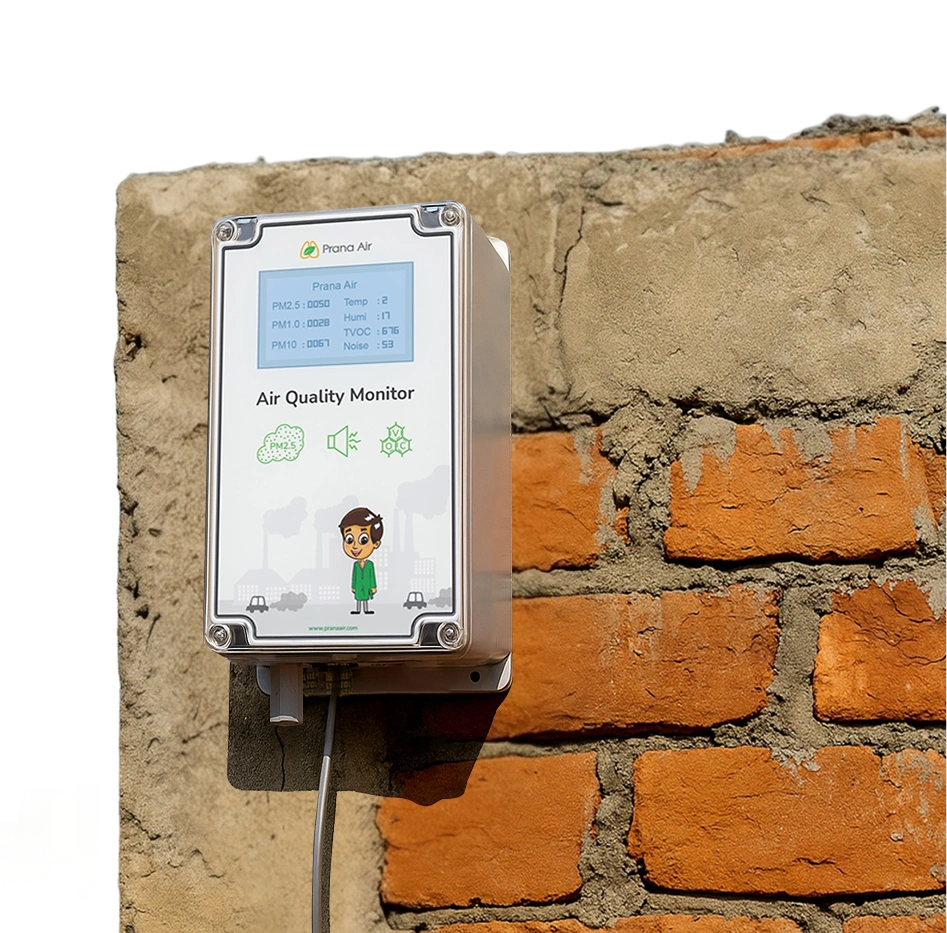

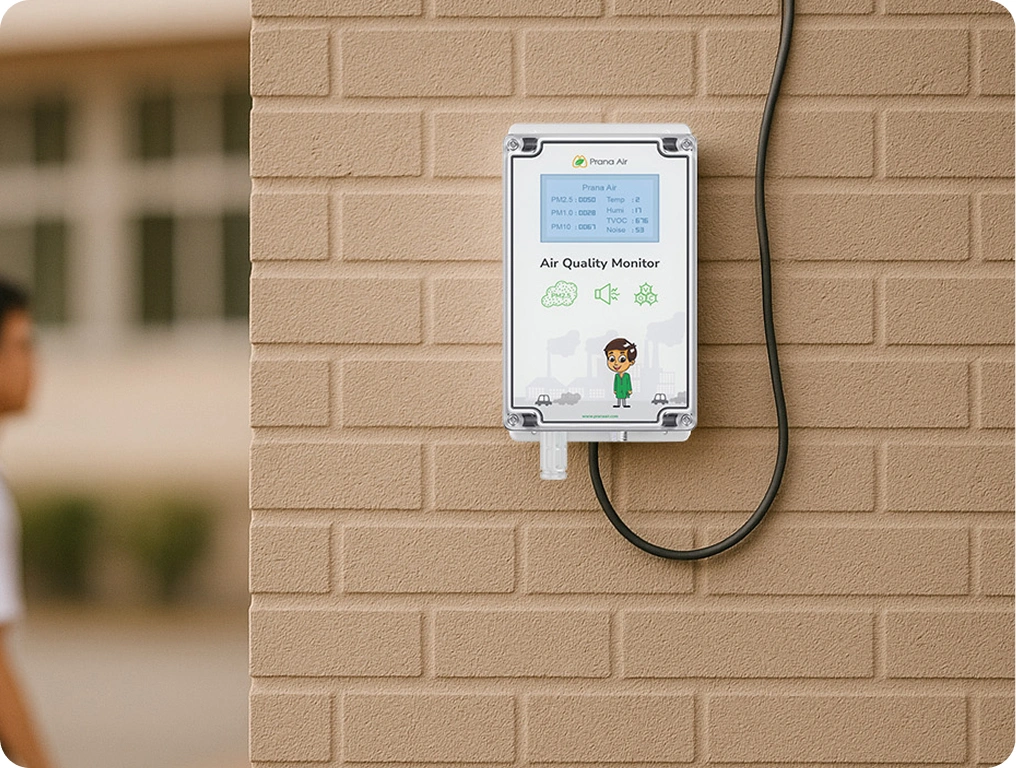

Ambient PM
It is the basic ambient monitor that measures AQI, PM2.5, PM10, temperature, and humidity providing a comprehensive overview of the air quality around you.
Features
Low-cost real-time air quality monitoring
Compact and lightweight design
Fully Waterproof Housing
Portable and easy to carry anywhere
AQI
PM1
PM2.5
PM10
Temp.
Humid.
Noise
Why Prana Airs Ambient Air Monitors?
Real-time air quality monitoring
Low-cost air quality monitors/sensors
Highly accurate and reliable sensors
Data accessibility on website, mobile & TV apps
Multiple modes of connectivity
Low-cost maintenance expense
Applications of Ambient Air Quality Monitor
Protecting public health and improving the environment in a variety of industries
Weather Station
Get accurate weather forecasts to predict weather conditions for different activities with stand-out features.
Know More

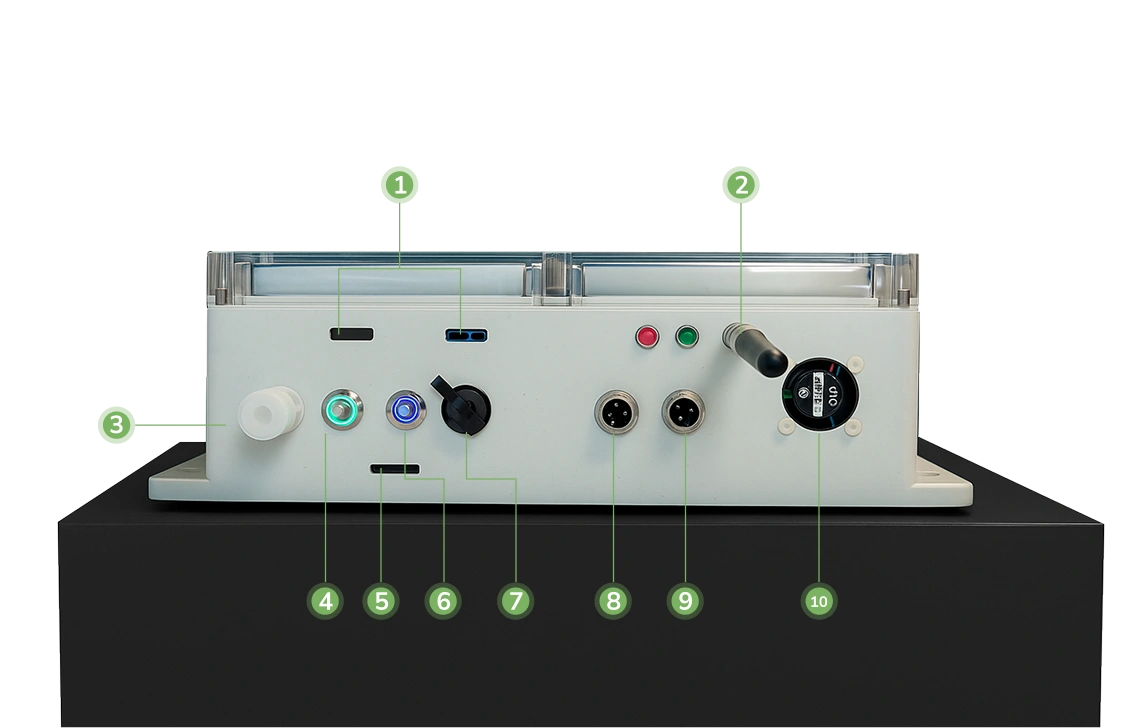

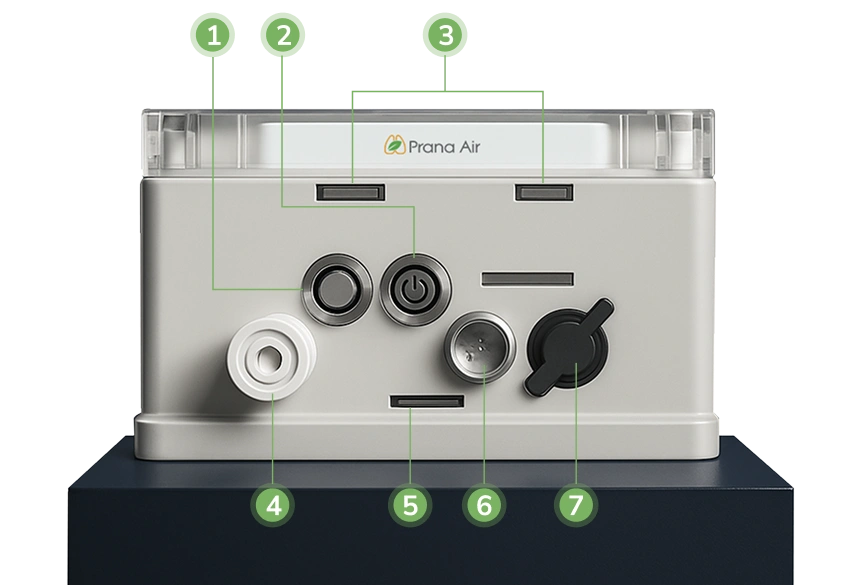

Parts & Labels
Mode Button
Power Button
PM Sensor Inlet (2)
Air Inlet - Temperature & Humidity
Micro SD Card Slot
Weather Station Slot
12V DC
Gases Inlet
SO2, NO2, CO, O3, TVOCS, H2S and NH3.
7 inch LED Data Display
Air Inlet
Noise & PM (1, 2.5, 10), Temperature, Humidity and Pressure.
Weather
LUX, Wind Speed, Wind Direction, UV and Rainfall.
PM Sensor Inlet (2)
GPS Antenna
Air Inlet - T/H
Mode Button
Micro SD Card Slot
Power Button
12V DC
Weather Station Slot
RS485/ Relay
Air Out
Technical Specifications
BrochureBasic Parameters:
- AQI, PM1, PM2.5, PM10, Temperature and Humidity
Basic PM + Weather Station:
- Basic parameters + LUX, Solar Irradiance, Wind Speed, Wind Direction, Rainfall, Gust & UV Index
Connectivity
- Wifi or GSM
Weight:
- 600g (Approx)
Data Interval:
- 30s to 1hour
USB Type:
- Micro USB
Mobile app:
- AQI App (available on ios and android)
Dimensions:
- 16.5 x 5 x 11.5 (cm)
Storage:
- AQI Cloud Storage
Housing
- Weatherproof

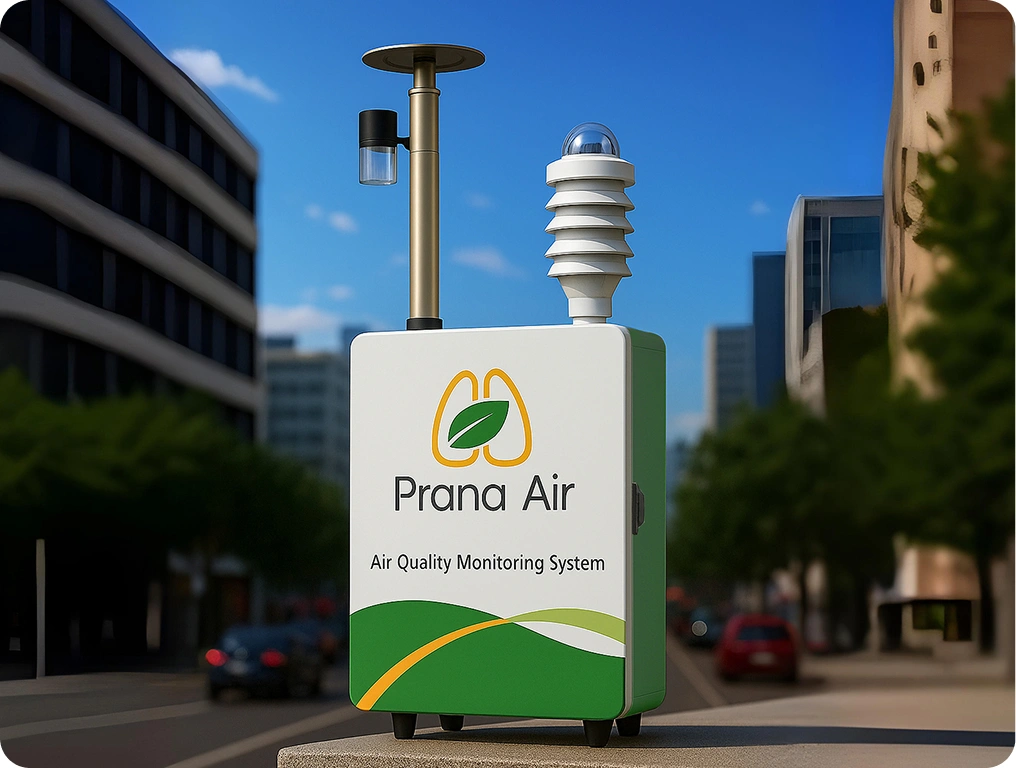

Parameters:
- Ambient Lite + O3, CH4, Noise, NH3, LUX, Wind Speed, Wind Direction, Rainfall and UV Index
Connectivity
- Wifi or GSM(4G) and RS-485 (MODBUS)
Weight:
- 1.4kg. (Approx)
Battery:
- —
USB Type:
- —
Data Interval:
- 30 sec to 1 Hour
Mobile app:
- AQI Mobile App
Dimensions:
- 18 X 38 (cm)
Storage:
- AQI Cloud Storage
Housing
- Weatherproof

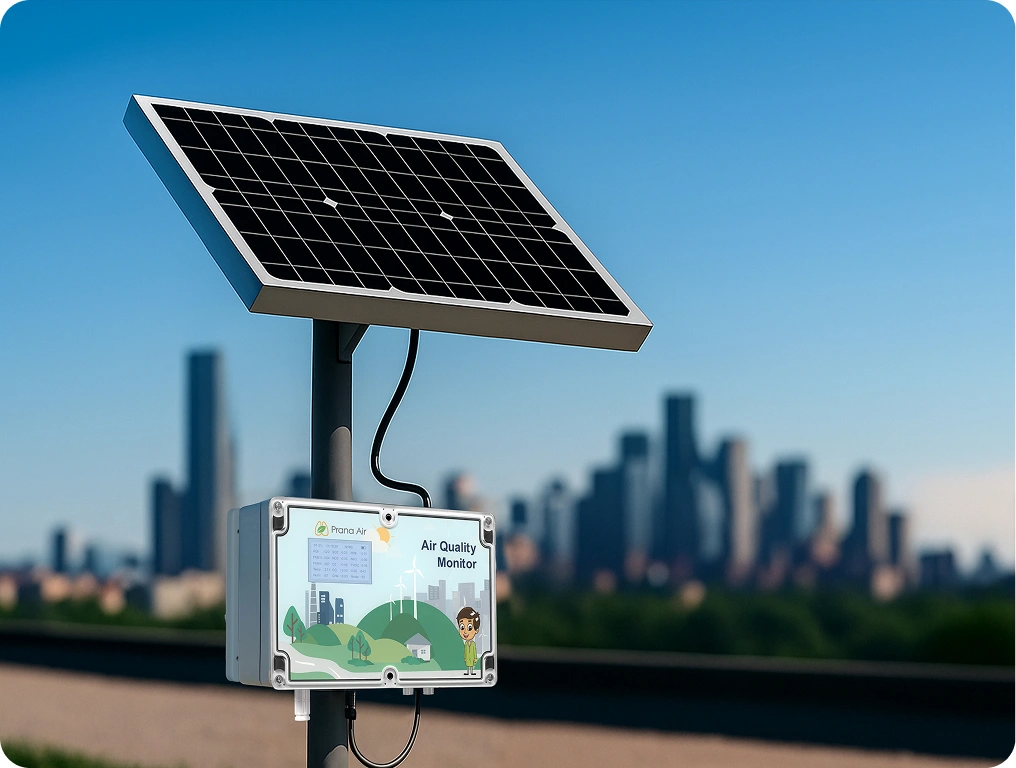

BrochureParameters:
- PM10, PM2.5 & PM1, temp., Humid, CO2, NO2, CO, SO2, O3,NH3, TVOC MOS, Noise,CH4
Connectivity
- Wi-Fi, GSM, LoRa,and RS-485
Weight:
- 1 kg. (Approx)
Power:
- Inbuilt Solar Panel
Data Interval:
- 30 sec to 1 Hour
Display Size:
- Monochrome 3.5 inch
Battery:
- 40,000 mAh in-built Backup (96 Hours)
Mobile app:
- AQI Mobile App
Dimensions:
- 230 X 150 X 85mm
Housing
- Weatherproof
Power Supply:
- Direct Power Supply or Solar (30watt)
Storage:
- Micro SD Card Storage + Cloud Storage (with AQI Dashboard)
Modes of Connectivity
Devices
Wifi
GSM
RS 485
Types of Connectivity
SD Card & Cloud Storage
Web-Dashboard, TV & Mobile
Data Accessibility & Analysis
Explore the most versatile ways of air quality data dashboards in various platforms.

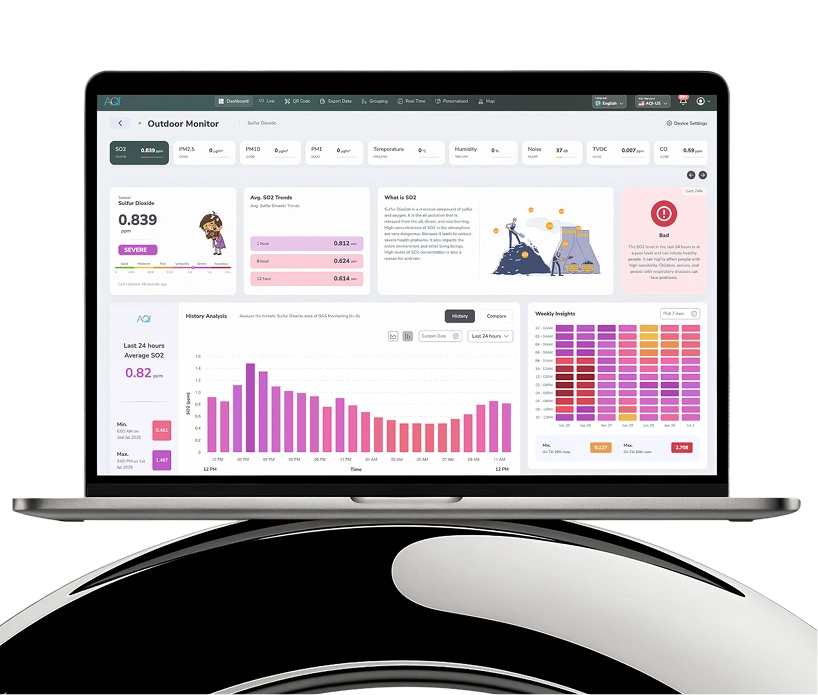

AQI Web-Dashboard
Analyze the real-time and historic data of your ambient monitor data on website.
Analysis: Worlds most polluted cities and countries.
Weather forecast of your current selected location
Health advice based on real-time air quality index
Compare different air quality parameters of two or more location
AQI Mobile App
Access your ambient air monitor data on the app.
Real-time air quality API for accurate global data
Insightful Air quality monitoring dashboard
World air pollution map and weather map
Compare different air quality parameters of two or more location
Download for
Download for

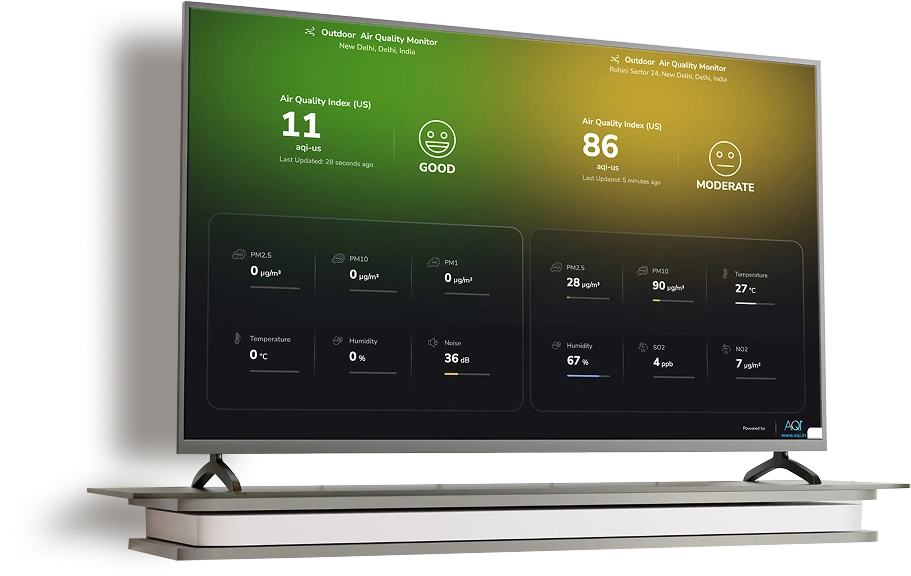

AQI TV App
Display your ambient monitor data on big TV screen.
Outdoor vs Indoor Air Quality data
24*7 remote access to the monitored data
AQI TV app controlled by AQI mobile app.
Choose from multiple ranges of themes.
Ambient Air Quality Monitoring is one of the primary aspects that govern environmental stability. Air quality is dynamic. Several factors control the air quality of a place. There are numerous natural, industrial, and anthropogenic sources that emit air toxins. Meteorological factors also alter and impact air quality. Outdoor air pollution does not just jeopardize the living. It is also detrimental to the ecology and the atmospheric chemistry of the earth. Thus, outdoor air monitoring is essential.
Ambient Air Quality Monitoring Devices
Outdoor air quality monitoring is an integral part of environmental assessments. Proper air monitoring helps in the formulation of an efficient action plan to mitigate air pollution. Conventionally, the Continuous Ambient Air Quality Management System (CAAQMS) used for ambient air monitoring is a very extensive and expensive set-up. However, not only does our device exemplify efficiency, but it is also compact and cost-efficient.
The primary aspect for determining environmental stability is the Continuous Ambient Air Quality Monitoring System (CAAQMS). There are many factors that control the quality of air and many sources contributing to it such as natural, industrial and anthropogenic. Meteorological factors also alter and impact air quality. Outdoor air pollution does not just jeopardize the living. It is also detrimental to the ecology and the atmospheric chemistry of the earth. Chronic Obstructive Pulmonary Disease (COPD) and asthma are examples of bad air quality for human health. Thus, outdoor air monitoring is essential. Conventionally, the Continuous Ambient Air Quality Management System (CAAQMS) used for ambient air monitoring is a very extensive and expensive set-up as it involves regular filter changes, and importing regulations. Prana Air provides ambient air quality monitors that are easy to use, portable, and highly accurate and cost-effective. The monitors come with detecting sensors for particulate matter, nitrogen dioxide, sulfur dioxide, hydrogen sulfide, carbon monoxide, and ozone based on different sensing techniques.
Using Continuous Ambient Air Quality Management System helps you to assess pollution extent, create awareness among the general public, decisions, and policymaking, and provides you with data for air quality model evaluation and emission control strategies.
Prana Air CAAQMS vs Traditional CAAQMS
Pollutants
Monitor Size
Real-time Data
Portability
Device Cost
Manpower
Accuracy
Technology
Data Accessibility
Prana Air CAAQMS
PM10, PM2.5, SO2. NO2, O3, CO
Compact & lightweight
In less than 30 seconds.
Easy portability
Low cost
Very less manpower
Highly accurate & precise
Sensor based
Available on website, mobile & TV app
Traditional CAAQMS
Technology such as BAM
Huge and bulky
In 20-25 minutes.
Restricted portability
High cost
Intensive Manpower
Highly accurate results
BAM/ Gravimetric etc.
Centralized government websites
- Prana Air Ambient Air monitor is CAAQMS (Continuous Ambient Air Quality Monitoring System) installed with sensors to detect the concentration of pollutants like PM10, PM2.5, SO2. NO2, O3, H2S, NH3, CO, etc. Prana Air monitor is smart, economical, easy to use, portable, compact lightweight, and consumes very less time for analysis and has Wi-Fi, GSM, and RS-485 type connectivity. The data is shown on a digital screen and provides 24×7 access to analytic results. The real-time data is given in less than 30 seconds with accuracy and precision.
- Traditional CAAQMS (Continuous Ambient Air Quality Monitoring System) is very big in size comparable to a small room. The system has different analyzers for different parameters such as BAM for Particulate Matter, pulsed UV fluorescence for SO2, chemiluminescence for NO2 and NH3, NDIR (Non-Dispersive Infrared Technology) for CO2, and UV photometric/ chemiluminescence for O3 and gives real-time data within 20-25 minutes. The system is bulky & huge and hence its portability is restricted. It requires manpower and high maintenance cost.
Data Accuracy Graph
In a study comparing the data accuracy of Prana Airs PM2.5 monitor to a high-end BAM monitor, the results showed that the two monitors were highly correlated.
